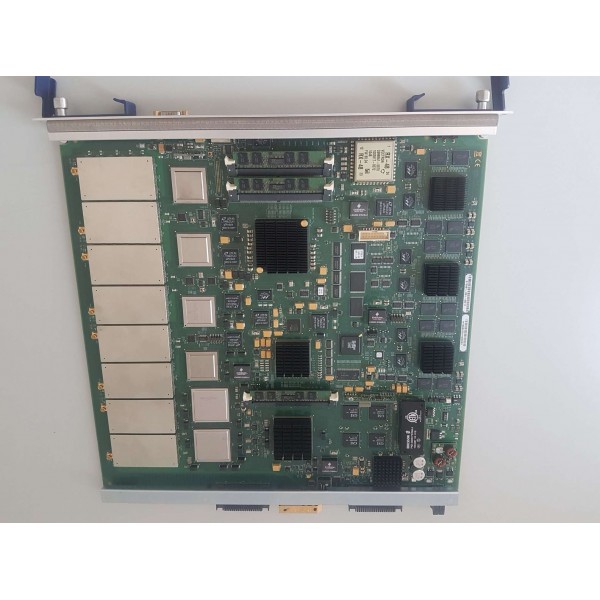

MOTOROLA RX48-Decoupled Refurbished Upstream Module

  • 320$
  • Motorola RX48 introduces advances in RF technology that will allow full DOCSIS 3.0 capability and much greater upstream spectrum utilization and, combined with the TX32 Decoupled Downstream Module, pr..
    • Ex Tax:320$
    • Brands Motorola
    • Product Code: 572961-005-00
    • Availability: In Stock

    Motorola RX48 introduces advances in RF technology that will allow full DOCSIS 3.0 capability and much greater upstream spectrum utilization and, combined with the TX32 Decoupled Downstream Module, provides industry  leading density in a fully protected integrated CMTS. It enables flexible scaling of upstream capacity to achieve subscriber speeds of 100 Mbps or beyond for Ultra-Broadband services.




                            Specifications

    Manufacturer

    Motorola

    Part Number

    572961-005-00

    Short desc.

    RX48 Decoupled Upstream Module

    General Info.

    * Compliant with DOCSIS 3.0, 2.0 and 1.x

    * Compatible with DOCSIS, J-DOCSIS and EuroDOCSIS

    * Upstream RF frequency range: 5 - 85 MHz

    * Upstream modulation: 4(QPSK), 8, 16, 32 and 64 QAM

    * RF receive input level range: -7 to +23 dBmV per DOCSIS 3.0 PHY specification

    * Input load impedance 75 Ohm

    Dimensions

    Height: 38.1 cm

    Width: 38.1 cm

    Depth: 2.54

    Condition

    Refurbished
