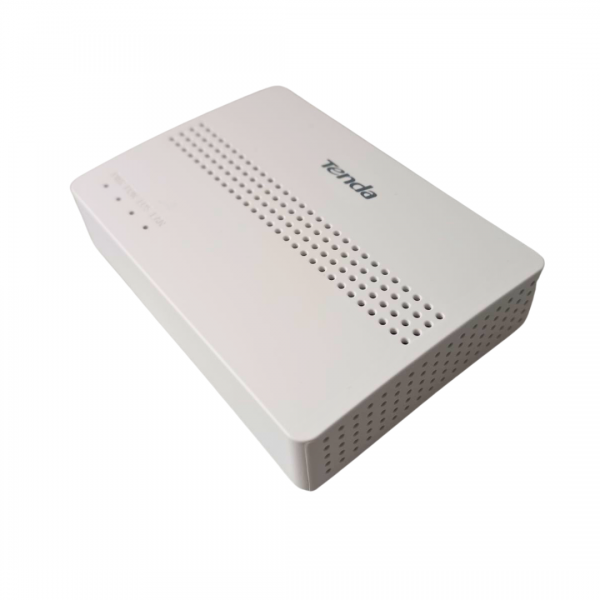

HG1 is an intelligent routing passive optical network terminal in the Tenda FTTH solution. HG1 provides 1 GE LAN port with high access speed up to 2.5 Gbps downstream and 1.25 Gbps upstream. It is widely compatible with the global mainstream OLT brand and supports plug-and-play, OMCI, and OAM remote maintenance features.
Hardware | |
IEEE Standards | - |
PON Standards | ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 |
Interfaces | 1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port |
LED Indicator | LAN，LOS，PON，PWR |
Button | 1 RESET Button |
Optical Mode | Class B+ |
Optical Wavelength | Transmit at 1310nm, Receive at 1490nm |
Transmission Distance | 20km Max |
Bandwidth | Upstream 1.25Gbps Max, Downstream 2.5Gbps Max |
Dimension | 59*57*23mm(W*D*H) |
TX Power | 0.5~5dBm |
RX Power | -28~-8dBm |
External Power Supply | DC 9V /0.6A |
Power Consumption | ≤5.4w |
Software | |
DHCP Server | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
WAN Connection | PPPoE , Dynamic IP, Static IP, Bridge |
Business Type | Internet |
Quality Of Service | - |
IP Version | IPv4, IPv6 |
Services | DHCP, Dynamic DNS |
VPN Pass-through | - |
Firewall | ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ |
IPv6 | Radvd, DHCPv6, MLD Proxy, MLD Snooping |
Diagnostics | Ping, Ping6, Tracert, Tracert6 |
TR069 | - |
VoIP | - |
Wireless | |
Frequency | - |
Bandwidth | - |
Channel Range | - |
Antenna | - |
Easy Client Setup | - |
Speed | - |
Transmission Power | - |
Wireless Functions | - |
Wireless Security | - |
SSIDs | - |
Max Terminal Linked | - |
Environment | |
Operation Temperature | 0°c ~ 45°c |
Storage Temperature | -40°c ~ 70°c |
Operating Humidity | 10% ~ 90% （Non-condensing） |
Storage Humidity | 5% ~ 90% (Non-condensing) |
Others | |
Package Contents | 1*HG1,1* Power adapter,1* Quick install guide |
Certification | CE, FCC, RoHS, Anatel |
