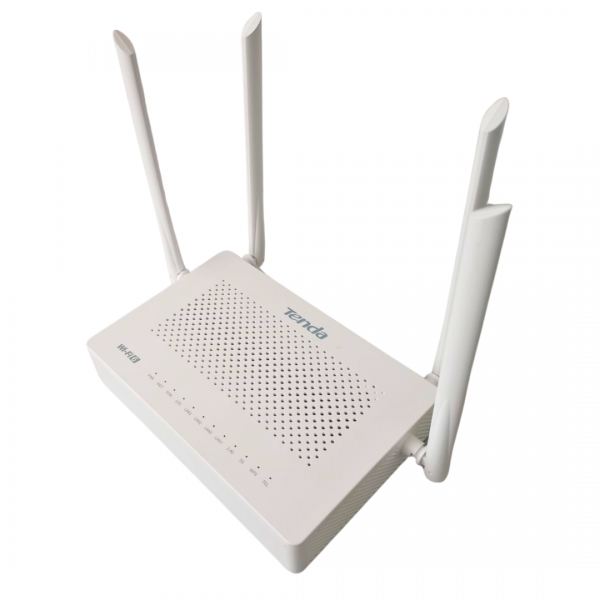

Tenda HG15 is a gigabit passive optical network XPON (EPON and GPON) terminal, which provides perfect terminal solutions and future-oriented service support capabilities for FTTH deployment, with high cost performance. The device uses the latest 802.11ax Wi-Fi 6 technology standard, is compatible with 802.11ac/b/g/n and supports a connection rate of 1500Mbps. It supports Internet/IPTV/VoIP and other services, features large transmission capacity, fast speeds, and high reliability, and is fully compliant with ITU-T G.984. x and other technical regulations.
Hardware | |
IEEE Standards | IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z |
PON Standards | GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4 EPON：IEEE 802.3 ah |
Interfaces | 1 *SC/APC or SC/UPC （optional）Port 4 *1000Mbps RJ45 LAN Ports 1 *TEL Port 1 *DC Power |
LED Indicator | PWR, PON, LOS, LAN, WLAN, TEL |
Button | 1 *RST/WPS Button |
Optical Mode | Class B+ |
Optical Wavelength | Transmit at 1310nm, Receive at 1490nm |
Transmission Distance | 20km Max |
Bandwidth | GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max |
Dimension | 220.8×141.9×31mm（L×W×H) |
TX Power | 0.5~5dBm |
RX Power | -28~-8dBm |
External Power Supply | DC 12V /1.5A |
Power Consumption | ≤18w |
Software | |
DHCP Server | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
WAN Connection | PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection |
Business Type | TR069, Internet, IPTV, VoIP |
Quality Of Service | Bandwidth Control |
IP Version | IPv4, IPv6 |
Services | DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh |
VPN Pass-through | PPTP, L2TP, Ipsec Pass-through |
Firewall | ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS |
IPv6 | Radvd, DHCPv6, MLD Proxy, MLD Snooping |
Diagnostics | Ping, Ping6, Tracert, Tracert6 |
TR069 | ACS, Connection request |
VoIP | Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm |
Wireless | |
Frequency | 2.4GHz & 5GHz |
Bandwidth | 2.4G :20M/40M 5G: 20M/40M/80M |
Channel Range | 2.4G : CH1-CH13 5G : CH36-CH48, CH149-CH165 |
Antenna | 4 *6 dBi Antenna |
Easy Client Setup | WPS |
Speed | 11n 300M + 11ax 1201M |
Transmission Power | 2.4G: <25.5 dBm(EIRP) 5G: <22.5dBm(EIRP) |
Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO |
Wireless Security | 64/128-bit WEP, WPA / WPA2/ WPA3 |
SSIDs | Main SSID at 2.4Ghz and 5GHz 4 Guest SSIDs Both At 2.4GHz and 5GHz |
Max Terminal Linked | 32 at both 2.4GHz and 5GHz |
Environment | |
Operation Temperature | 0°c ~ 45°c |
Storage Temperature | -40°c ~ 70°c |
Operating Humidity | 10% ~ 95% （Non-condensing） |
